DESCRIPTION AND USE

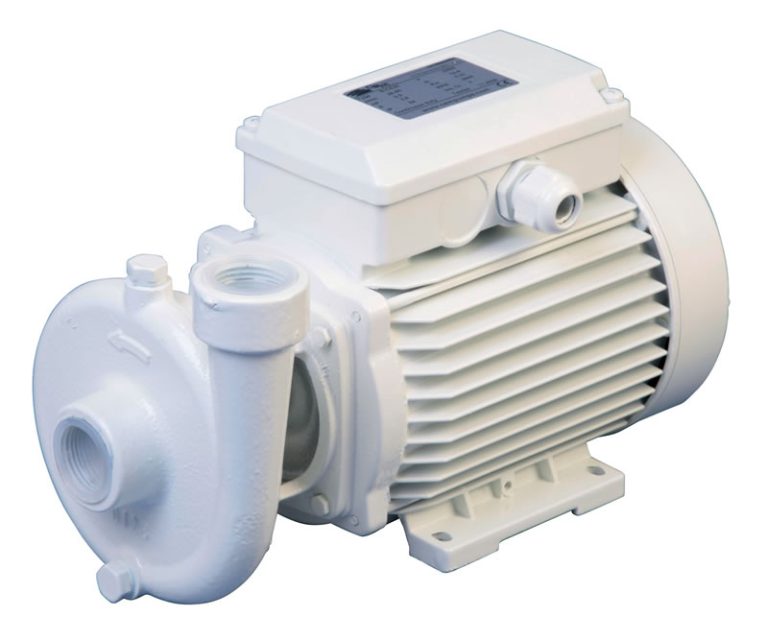

Single impeller centrifugal electric pumps suitable to transfer and/or supply large amounts of liquid. Particularly indicated to be used with fresh water and diesel oil.
Installing a non-return valve at the suction inlet is recommended.
CONSTRUCTION FEATURES
Pump body: CAST IRON
Impeller: BRONZE
Shaft : STAINLESS STEEL AISI 316
Motor support: CAST IRON
Mechanical seal: CERAMICS – GRAPHITE – NBR
(special corrosion-proof)
MOTOR
Direct Current:
12/24V permanent magnets motor
Protection: IP23
Insulation Class: F
Continuous Duty (S1)
Alternate Current:
Induction electric motor, 230V single-phase (M) / 230÷400V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1).
SCOPE
Liquid free of solid impurities
Temperature range of the liquid: from +0 to +50 °C
Max. suction depth: 7 m.
Static pressure inside the pump body: 6 bar max.
ACCESSORIES ON REQUEST
Non-return valve 1”
PERFORMANCES
12V-24V: DIRECT CURRENT
230M, 50Hz: single-phase alternate current
230÷400T, 400÷690T 50Hz: three-phase alternate current
Available on request other voltages at 50Hz and 60Hz.
